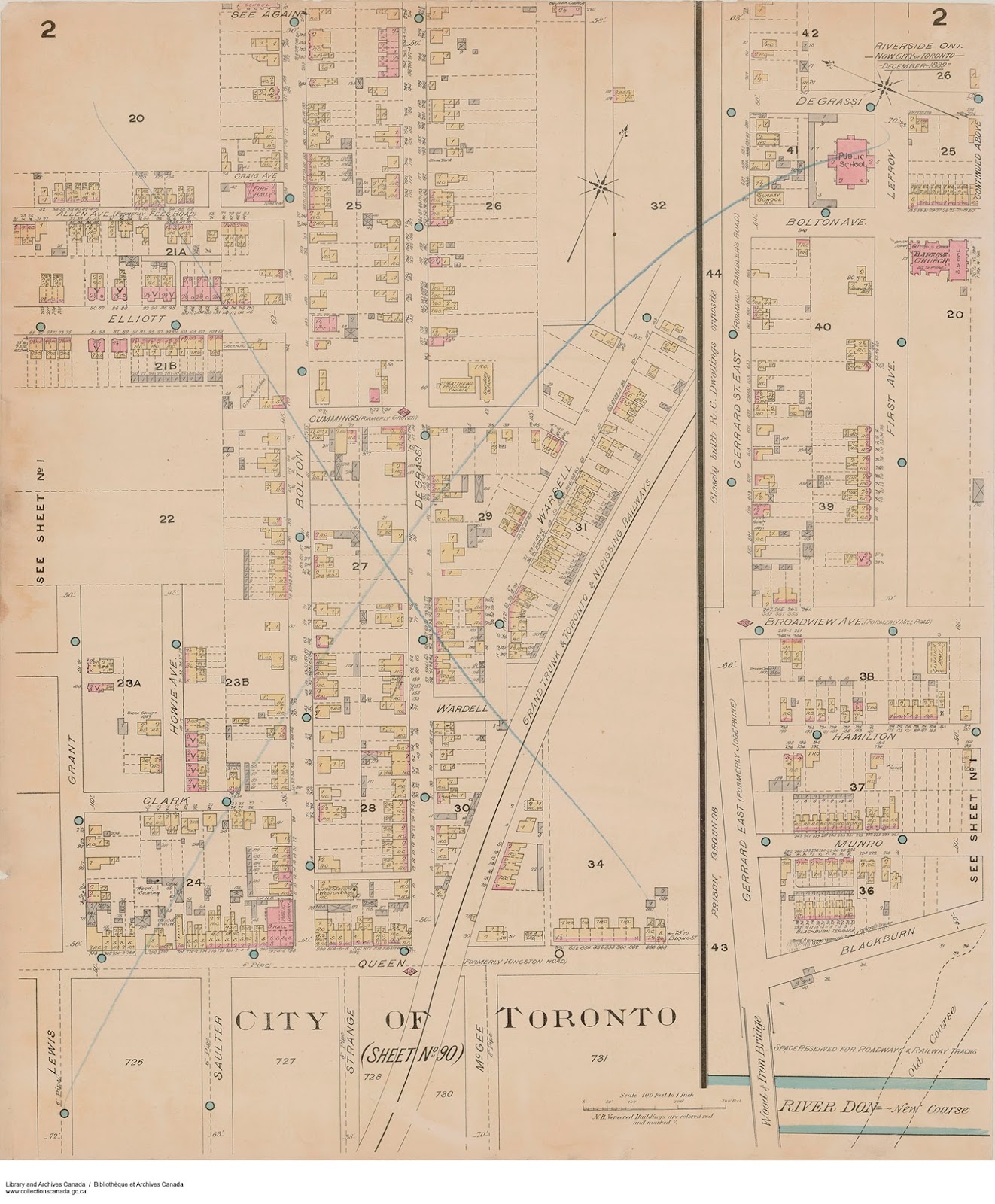

vintage map of showing footprints of buildings

Fire insurance atlases and plans are detailed maps used to research the history of buildings and neighbourhoods. Atlases cover the city as a whole. Plans cover specific neighbourhoods and often have more detail than atlases.

You can view our holdings online (1858 to 1912) or in person (1858 to 1973).

Digitized fire insurance maps

This list includes maps from Toronto Public Library as well as other institutions.

Our atlases and volumes of plans are large PDFs with pages presented in their original order. Easier-to-navigate versions with clickable pages are available from other sources. Learn about external sources in this index.

Below is a map that shows approximate coverage of the volumes of plans. (Volumes 10 and 11 are not available digitally.)

Map of Toronto divided into volumes

Atlases

Covers: Toronto as a whole

1858

1880

1884

1890

1893

1894

1899

1902

1903

1910

1912

1913

1923

1924

Volume 1 plans

Covers: Exhibition, Downtown, Financial District, Garrison, King-Spadina, Railway Lands, St. Lawrence, University.

1889

1892

1909

1918

Volume 2 plans

Covers: Garrison, Exhibition, Trinity Bellwoods, Dufferin Grove-Bickford Park, King-Spadina, Railway Lands, Kensington-Grange, Palmerston-Sussex Ulster, University, Downtown.

1889

1910

Volume 3 plans

Covers: Port Lands, Harbour, St. Lawrence, Regent Park, Cabbagetown, Downtown, Riverdale, Leslieville, Toronto Islands.

1911 to 1914

Volume 4 plans

Covers: Parkdale, Exhibition, Sunnyside, High Park, Brockton.

1910 to 1914

Volume 5 plans

Covers: Annex, Deer Park, Dovercourt, Rosedale-Moore Park, Seaton Village, Wychwood Hillcrest, Yorkville.

1890 to 1904

1907

1907 to 1914

Volume 6 plans

Covers: Beach, Leslieville, Riverdale, Upper Beach.

1913 to 1916

Volume 7 plans

Covers: Cedarvale, Deer Park, Earlscourt, Fairbank, Forest Hill, North Toronto, Oakwood-Vaughan, Wychwood-Hillcrest.

1915

Volume 8 plans

Covers: Danforth, East York.

1916

Volume 9 plans

Covers: Beach, Birch Cliff, Clairlea-Golden Mile, Cliffside-Cliffcrest, Danforth, East York, Oakridge, Scarborough Junction, Upper Beach.

1897 to 1916

Volume 12 plans

Covers: Bloor West Village, High Park, Junction, Lambton, Earlscourt.

1903 to 1918

Other plans

Parkdale, 1882

Yorkville (St. Paul's Ward), 1884

Riverside (St. Matthrew's Ward), 1889

West Junction, 1889 to 1892

Fires, 1895

Fires, 1904

G.T.R. [Grand Trunk Railway] Elevators No. 1 & 9, 1900

Mimico including New Toronto, 1913

Fire insurance maps available in person

Many of these maps - including those under copyright - can be viewed at Toronto Reference Library. Our finding aid lists what's available, with links to the catalogue records.

Finding aid for non-digitized fire insurance maps

About these maps

Fire insurance maps can be hard to understand at first glance. Learn about their history, current uses and tips on how to read them.

History

Overview

Fire insurance atlases (consisting of pages called "plates") and plans (consisting of pages called "sheets") are detailed large-scale maps of cities, smaller municipalities and industrial sites.

These plans were prepared for and leased to insurance companies who used building sizes and construction materials to determine the fire risk and therefore to be able to quote insurance premiums to customers.

Plans and atlases were updated frequently as buildings were burned, torn down, rebuilt or new areas were developed. When minor corrections were necessary, revisions were printed and distributed to the agents to paste over outdated sections of the maps. This sometimes resulted in multiple layers and plans with the same date having different revisions.

New editions were only published periodically, when major changes took place. Agents were required to return the outdated plans to the mapping company, in order to receive revised plans. These returns were destroyed.

Coverage of Toronto and its neighbourhoods

The forerunner of fire insurance mapping of Toronto was the 1858 Boulton atlas. At one inch to 100 feet it was the largest scale map of Toronto produced to that date and the first to show construction materials of building.

Charles E. Goad (1848-1910), who initiated fire insurance mapping in Canada in 1875, produced his first fire insurance plan of the city of Toronto, Ontario in 1880 (revised in 1889 and 1892). It consisted of two volumes of large sheet maps at the scale of one inch to 50 feet (relative scale 1:600). Plans measured 54 x 64 cm, or 21 x 25 inches.

Generally only developed areas (usually those within the city proper) were included. Maps of outlying areas were not produced unless they were built up. Thus, separate plans for places such as West Toronto Junction and Yorkville were prepared in the 1880s.

Detailed plans sometimes were provided of commercial and industrial sites, either within an atlas itself (e.g. Consumers' Gas Company and Gooderham and Worts in 1880, or as separately issued plans (e.g. the Grand Trunk Railway Elevators in 1890).

Beginning in 1910, the expansion of Toronto led to the production of multiple volumes of plans, with each volume covering a different part of the city. The amount of detail varied; it was usually intense in the city core and for major buildings, while buildings further from the city centre, when represented at all, were shown only by outline and type of structure. Revisions to these area volumes were frequent from the turn of the century to the 1940s in response to changing development and growth in Toronto.

In 1917, Goad's sons sold the business to the Canadian Fire Underwriters Association, who published plans under the imprint of Underwriters' Survey Bureau Limited. In 1965, the USB became the Plan Division of the Canadian Underwriters' Association.

The final Insurance Plan of the City of Toronto was produced between 1952 and 1973. At one inch to 100 feet and measuring 30 x 33 cm, or 13 x 13 inches, they were smaller in scale than earlier plans and kept in binders. In 1974, the Insurers' Advisory Organization took over production of Canadian plans, but in 1975 ceased production of fire insurance plans due to escalating cost.

Current uses

Today, researchers find fire insurance plans an invaluable information source, using them for a variety of purposes, including to:

  • narrow the date when a building was constructed
  • determine earlier street numbers of individual buildings and previous names of streets which may have changed
  • locate a building on the street and in relation to other buildings on the block. This is useful in resolving confusion that sometimes happens in directory research. Sometimes a directory will indicate that a building, which is now located in mid-block, as being at the corner if no closer buildings to the corner have yet been built.
  • determine the lot number, block number (if there is one), and the registered plan number of a property. These can be useful with assessment and title searches.
  • indicate buildings that may have been demolished or recently constructed
  • track how buildings have been used and altered over time
  • indicate a building in relationship to its neighbourhood, such as schools, churches, industries
  • show how a neighbourhood has changed over the years
  • indicate sites where soil may be contaminated from former noxious uses

Tips for reading

Below is a key to the symbols, colours and abbreviations (1880 to 1892).
